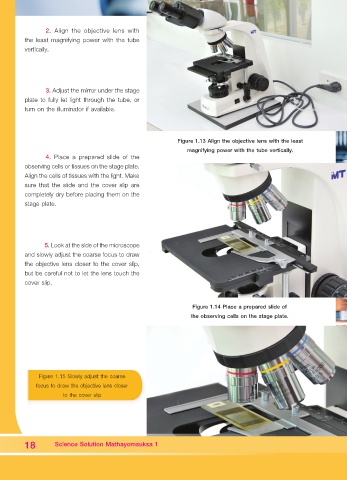

Page 11 - ตัวอย่าง Science Solution 1

2. Align the objective lens with
the least magnifying power with the tube
vertically.

3. Adjust the mirror under the stage
plate to fully let light through the tube, or
turn on the illuminator if available.

Figure 1.13 Align the objective lens with the least
magnifying power with the tube vertically.
4. Place a prepared slide of the
observing cells or tissues on the stage plate.
Align the cells of tissues with the light. Make
sure that the slide and the cover slip are
completely dry before placing them on the
stage plate.

5. Look at the side of the microscope
and slowly adjust the coarse focus to draw
the objective lens closer to the cover slip,
but be careful not to let the lens touch the
cover slip.

Figure 1.14 Place a prepared slide of
the observing cells on the stage plate.

Figure 1.15 Slowly adjust the coarse
focus to draw the objective lens closer
to the cover slip
